Clamping and braking element
Series CBPS
- sensing with process reliability
Sensing of opened/closed state (optional) C-groove & T-groove for detection using a magnetic field sensor - Energize to open (NC)
through spring-loaded energy storage - high durability
5 million static clamping cycles - Safety element
Safe braking in case of energy failure - Standard interface
Suitable for standard cylinders to DIN EN ISO 15552 and compact cylinders to DIN EN ISO 21287

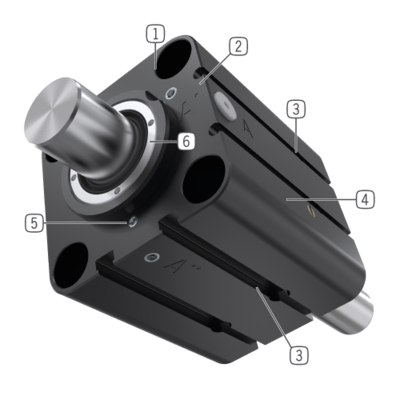

- Installation Options
- Standardized mounting interface for easy integration
- Energy Supply
- Air connections on the sides and front for maximum flexibility
- Status Query
- Open/closed detection via magnetic field sensors
- Integrated C-slots & T-slots
- Ventilation
- for fast and safe operation
- Accessibility
- Manual emergency release for unlocking during a power failure
- Protection
- Scrapers prevent foreign objects or dirt from entering
 | Use
Advantage
| Details |
