System reference
Welding device
Clamping and braking elements | System solutions | Mechanical and plant engineering | Metal | Welding and cutting
Clamping element
Series MBPS
Axis Compensation Modules
Series XYR1000
- Suitable for low to high loads
- Connection flange according to EN ISO 9409-1: TK 40 ... TK 200
- Axis compensation in the X-Y plane
2. Axis compensation modules
- Suitable for low to high loads
- Connection flange according to EN ISO 9409-1: TK 40 ... TK 200
- Axis compensation in the X-Y plane
Challenge
For welding suspension dampers, certain areas needed to be protected from weld spatter. In this process, a cover needed to be supplied to an indexer linearly and turned with the indexer during the welding process.
Solution

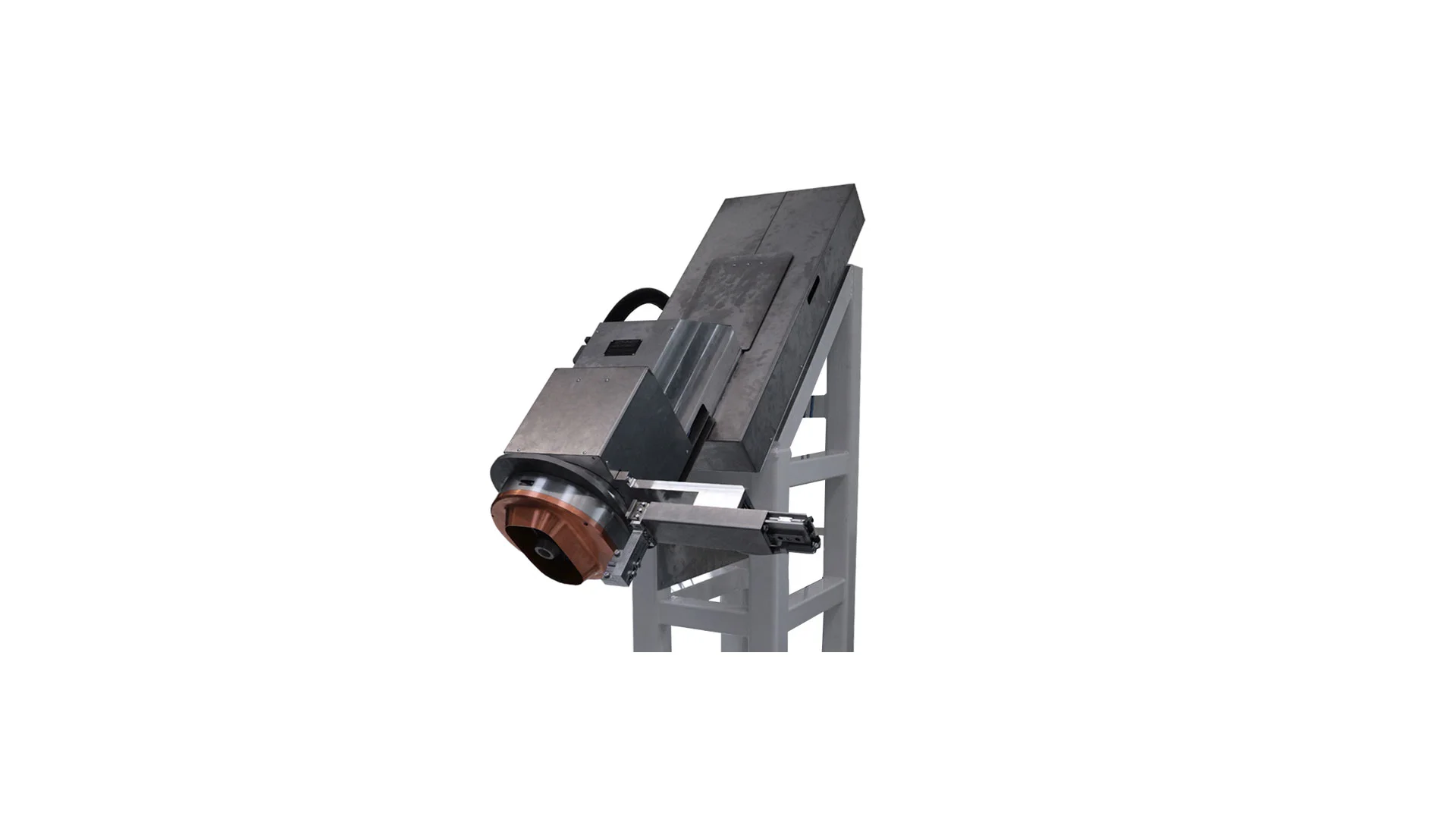

As the solution, a device was developed that feeds spray protection made of Wirbalit material via a pneumatic linear axis. A mounted rotary axis is powered by the rotation of the welding table. An integrated axis compensation module ensures compensation for the axial offset. The entire device was implemented in a weldable design.
Highlights and technical data
Stainless steel
IP40
Pneumatic
Position maintenance by means of clamping element
Technical Data
| Drive type | PNEU |
| Max. gripping force | 2700 [N] |
| Gripping concept | KRAFT |
| Gripping safety device | KLE |
| Max. stroke | 500 [mm] |
| IP class | IP40 |
| System weight | 460 [kg] |
| Max. workpiece temperature | 80 [°C] |
Built-in standard components
Axis Compensation Modules
Series XYR1000
X- and Y-axis
Connecting flange according EN ISO 9409-1
40 / 50 / 63 / 80 / 100 / 125 / 160 / 200
Stroke X/Y level +/-
3.0 mm - 12.5 mm
Retention force centred
150 N - 3000 N
Retention force decentred
30 N - 1250 N
Weight
0.5 kg - 18 kg

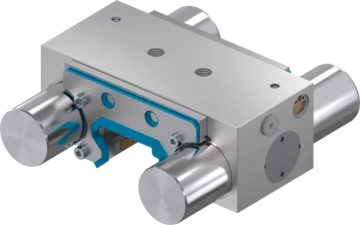

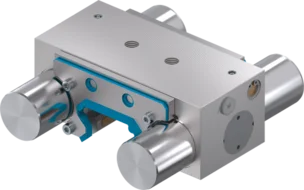

Clamping element
Series MBPS
Profile rail guide
Holding force
750 N - 4700 N
Theoretical holding force (µ=0,1)
938 N - 5875 N
Operating pressure
4.5 bar - 6.5 bar
Weight
0.42 kg - 4.8 kg
