Internal gripper
Series LG1000
- Individually adjustable
The design of the gripper enables you to grip not only cylindrical gripping surfaces, but also conical and square ones with process reliability - Integrated air or vacuum feedthrough
Use this option for applications such as leak tests, purging or vacuuming your part - Surface protection provided by silicone membrane
In addition to covering a vast range of gripping diameters, the membrane provides ideal protection from damage
Series features
IP54
Maintenance free
Axial energy supply
Radial energy supply, through-hole
- Energy supply

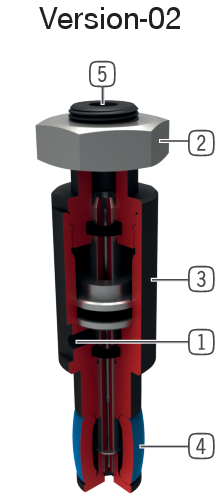

- Axial (version-01) or radial (version-02)
- Mounting and positioning
- via fit, thread and lock nut
- Robust, lightweight housing
- Hard-coated aluminum alloy
- Direct gripping with rubber membrane
- High holding force due to high friction value
- reset when venting
- Through-hole
- Compressed air or vacuum connection for cooling the workpieces or testing them for leaks (version-02)
