RSB-31-31-00001-A

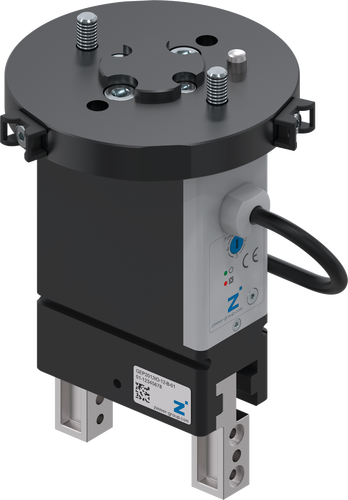

Set: Electric 2-jaw parallel gripper GEP2013

• Largest stroke in a small installation space
  Do you require a large stroke due to the fact that you are operating either a form-fit gripper or a large range of parts, but the installation space and the load capacity of your application is limited? Then this gripper is perfect for you!
• Simple activation
  Control of the I/O ports like a valve. Easy to integrate into the control system.
• Electrical operation
  Ideal for small parts handling or other applications in which no compressed air is available.
• Mechanical self-locking mechanism
  If there is a power failure or an emergency stop, the self-locking mechanism provides additional safety.
• URCap-compatible
  The jaw position feedback is an analog 0–10 V signal that can be easily configured with URCap.

add to cart

•

  10 million maintenance-free cycles (max.)
•

  Self locking mechanism
•

  Gripping force adjustable

Highlights

Suitable for robot type	Universal Robots
Stroke per jaw	13 mm
Gripping force	360 N
Gripper finger length	100 mm
IP class	IP40
Weight	0.78 kg

Set articles

Adapter plate APR000018 Accessories 1x	Adapter plate APR000018 Accessories	1x	Details
New Series GEP2000 GEP2013IO-12-B-04 2-jaw parallel grippers 1x	New Series GEP2000 GEP2013IO-12-B-04 2-jaw parallel grippers	1x	Details
