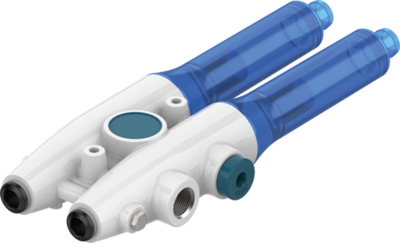

Vacuum ejector
Series ZPG
- Powerful
- Volume flow: 85 l/min - 343 l/min
- Air consumption: 20 l/min - 194 l/min
- Vacuum level max.: -94 kPa
- Ideal for the cleanroom
The housing impresses with a dirt-repellent surface, ideal for use in cleanrooms. An integrated filter with self-cleaning function ensures easy maintenance and additional efficiency.
Vacuum level max.
Volume flow [l/min]
Weight [kg]
Installation size: ZPG2031 | ||||
| Order-No. | Vacuum level max. | Volume flow | Air consumption at 2.2 bar | |
|---|---|---|---|---|
| ZPG2031-F-W | -90 [kPa] | 85 [l/min] | 20 [l/min] | |
Installation size: ZPG2032 | ||||
| Order-No. | Vacuum level max. | Volume flow | Air consumption at 2.2 bar | |
| ZPG2032-F-W | -90 [kPa] | 172 [l/min] | 40 [l/min] | |
Installation size: ZPG2531 | ||||
| Order-No. | Vacuum level max. | Volume flow | Air consumption at 2.2 bar | |
| ZPG2531-F-W | -94 [kPa] | 146 [l/min] | ||
Installation size: ZPG2532 | ||||
| Order-No. | Vacuum level max. | Volume flow | Air consumption at 2.2 bar | |
| ZPG2532-F-W | -94 [kPa] | 292 [l/min] | ||
Installation size: ZPG3021 | ||||
| Order-No. | Vacuum level max. | Volume flow | Air consumption at 2.2 bar | |
| ZPG3021-W | -92 [kPa] | 171 [l/min] | 97 [l/min] | |
Installation size: ZPG3022 | ||||
| Order-No. | Vacuum level max. | Volume flow | Air consumption at 2.2 bar | |
| ZPG3022-W | -92 [kPa] | 343 [l/min] | 194 [l/min] | |
